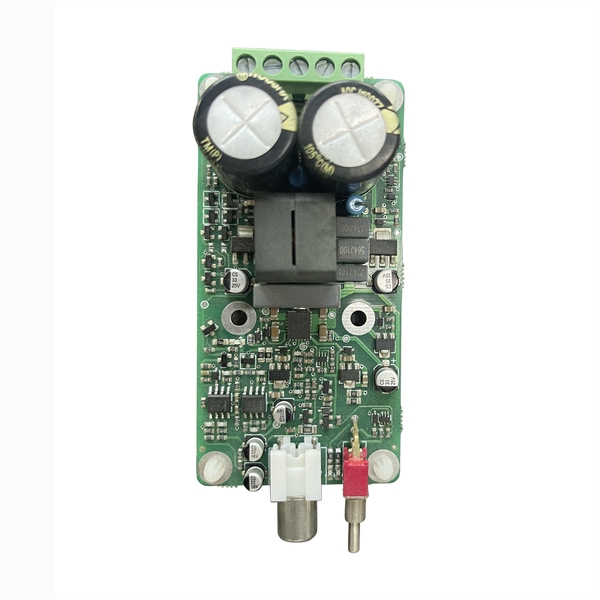

The MT60 is a high performance class-D and SMPS power amplifier that enables true premium sound quality with class-D efficiency and Class AB real sound system. It features an advanced integrated feedback design and proprietary high speed gate driver error correction (PurePath™ Ultra-HD). This technology allows ultra low distortion across the audio band and superior audio quality

With improved design to obtain highest performance and lowest noise and distortion, this module provide an excellent audio solution that highly compact and efficiency with state-of-the-art performance.

Features

•    90% Efficient Class-D for woofer +Class AB for tweeter

•    Fully differential layout design for lowest noise and distortion

•    Very Compact size

•    Additional power ON/OFF reset circuit for Pop noise suppression

Typical Applications

•    Active Loudspeakers

•    High-end stereo and multi-channel amplifiers

•    Bluetooth & MonitorAudio Product

Engineering Specifications

Parameter	CH1	CH2
Output power (1% THD+N, 1KHz @8 Ω)	31W	30W
Output power (1% THD+N, 1KHz @4 Ω)	62W	62W
THD+N (1KHz @ 10 W)	<0.006%	<0.006%
Frequency Response (1W @8 Ω, 20-20KHz)	+/-0.5dB	+/-0.5dB
System Gain	26dB	20dB
S/N Ratio (Refer to rated power @ 8 Ω,A-weighted)	97dB	102dB
Noise floor	-70dBV	-73dBV
Damping Factor (10-400Hz @ 8 Ω)	>300	>100
Input sensitivity	800mV	1.55V
Cross talk	>88dB @1KHz; >65dB @10KHz
AC power input（SMPS)	100-240VAC	100-240VAC
